Universal Intercooler Aluminum Piping Kit
Universal Intercooler Aluminum Piping Kit
Regular price
$492.57 USD
Regular price
$202.39 USD
Sale price
$492.57 USD
Unit price
per
Couldn't load pickup availability
SPECIFICATIONS
Vendor Name: Horsepower Addicts
Item Type: intercooler Turbo Kit
Material Type: aluminum
Compatibility: Universal
Item Length: 69cm
Item Width: 38cm
Model Name: Universal
Item Height: 31cm
Item Weight: 16kg
Title:
DIY 450x300x76mm Bar & Plate Front Mount Turbo Intercooler + 3" Aluminum Piping Hose Clamps Kit + BOV Kit
Application:
Universal - Requires Modifications (not directly install pipe )
Details:
100% Brand new

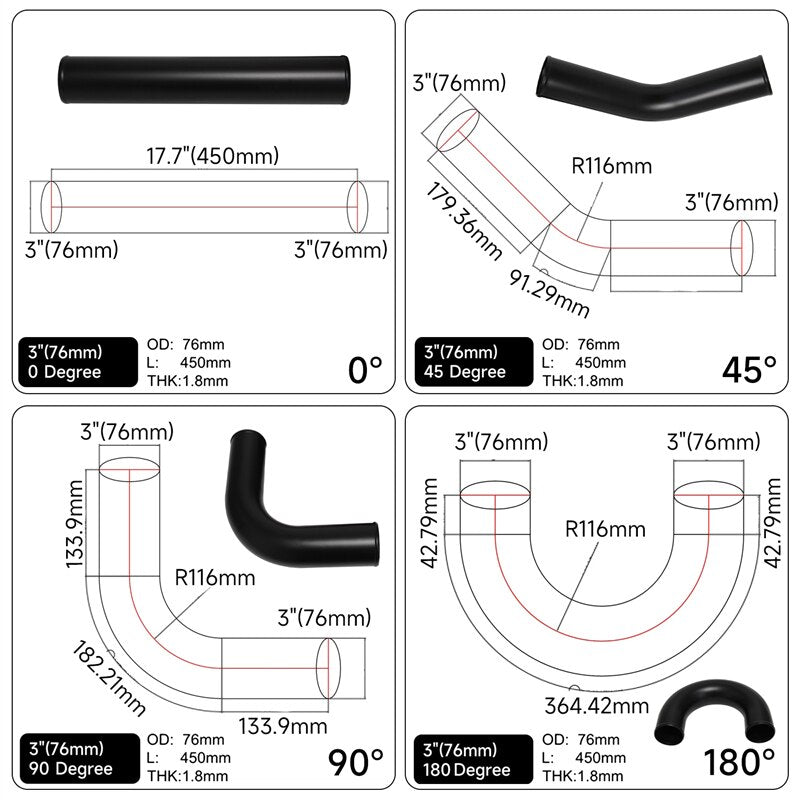

3" 76mm aluminum piping kit made from T6061 aluminum
Pipes all have beaded flared ends to give extra grips on the couplers
Stainless steel t-bolt clamps for tighter clamp down onto pipings & couplers
Increases up to 65% air flow compared to standard pipes
Great kit for DIY turbo projects. ***Customer will need to cut or bend piping to fit onto car***
Intercooler:
Bar and Plate design giving a light weight design with high air flow into outlet pipes
Pressure drop: 0.2-0.5 at 15 PSI, 2-5 at 35 PSI
3" 76mm inlet / outlet
Billet Aluminum Body
Horn with 8 Discharge Ports That Releases a Unique Discharge Sound
40mm, Hard-Anodized Valve for Increased Airflow
Dual Spring System Promoted Response and Allows for High Boost Pressures
Holds Up to 30 PSI Boost Pressure
2 Bolt Mounting Design

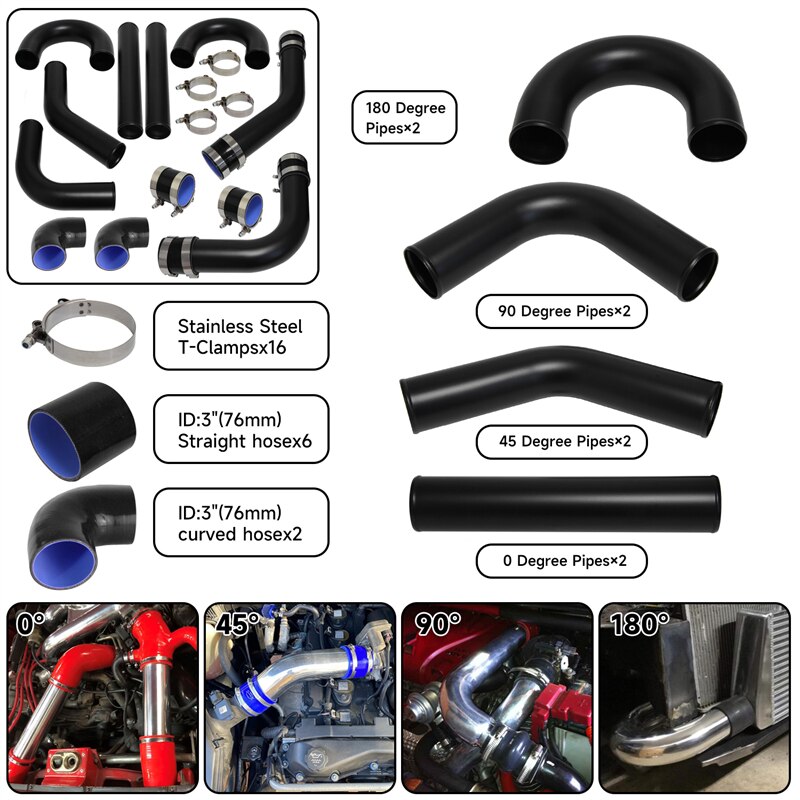

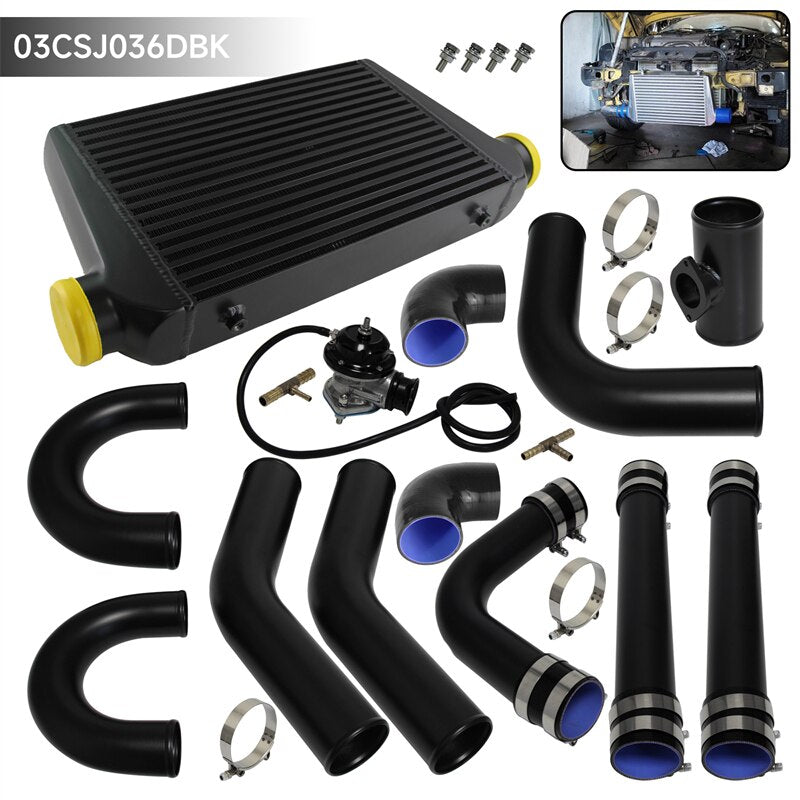

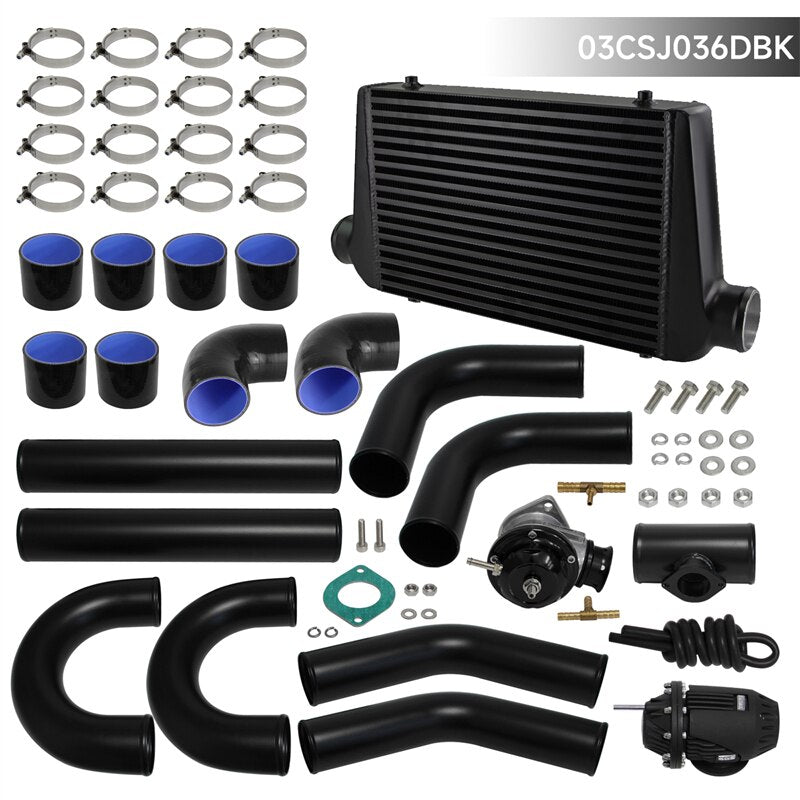

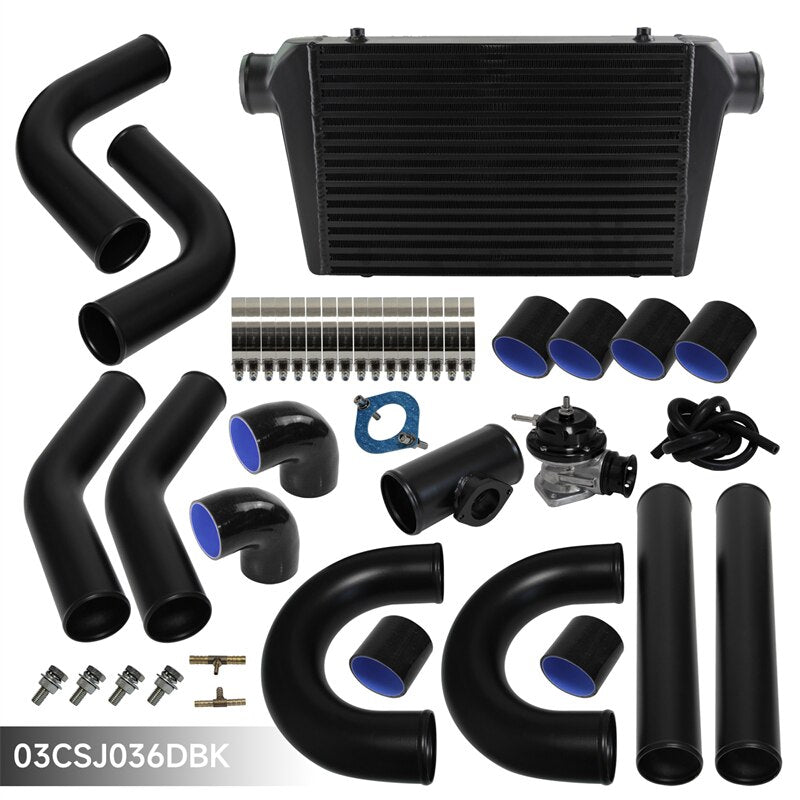

PACKAGE INCLUDES:
1 X Aluminum Intercooler
1 Kit BOV
2 X Aluminum Straight Pipe
2 X Aluminum 90 Degree Pipe
2 X Aluminum 45 Degree Pipe
2 X Aluminum 180 Degree Pipe

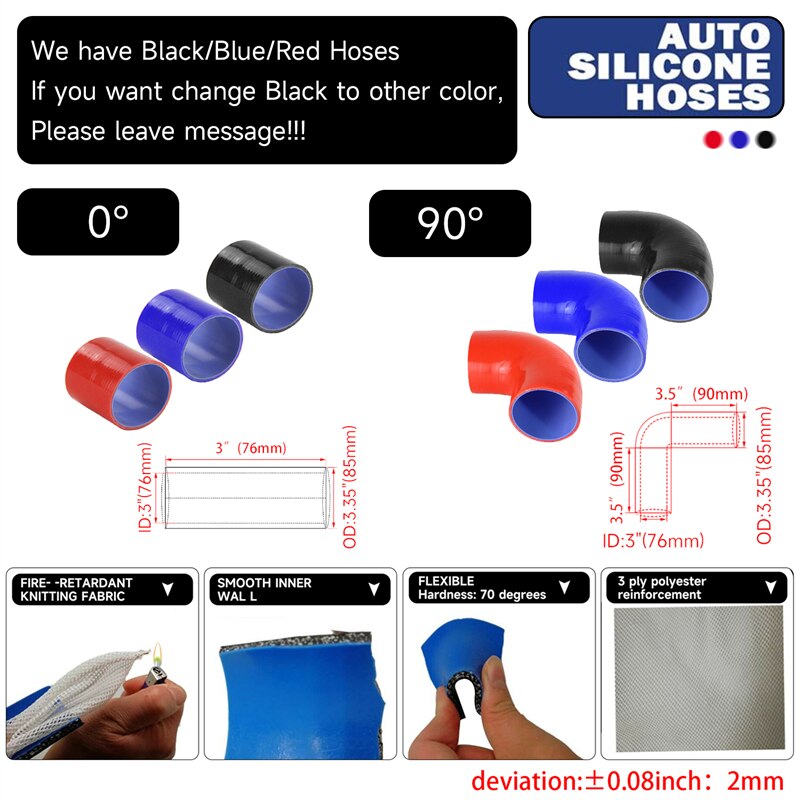

6 X Straight Silicone Coupler
2 X 90 degrees Silicone Coupler
16 X T-bolt Clamps
4 X M8 Screws
Note:
Universal Custom DIY (Do It Yourself) Piping Kit
Perfect For All Turbocharger & Supercharger Projects
THIS KIT WILL REQUIRE CUTTING WELDING, MODIFICATIONS
No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation
