SPECIFICATIONS
Vendor Name: Horsepower Addicts
Special Features: Bluetooth
Software Version: NEW
Item Type: Code Readers & Scan Tools
Language:
English
Software Update:
Yes
Automotive Scanner Function:
Reading Codes
Auto Scanner Function:
Erasing Codes
Auto Diagnostic Function:
Reset Turns off Check Engine Light (MIL),
OBD2 Scan Tool Function:
Data Stream Reads and displays live ECU/PCM data stream
Special Feature 1: Read Vehicle Information Display,Turn off engine warning light,Smoke emission Check,Engine EPC Check
Weight: 0.3kg

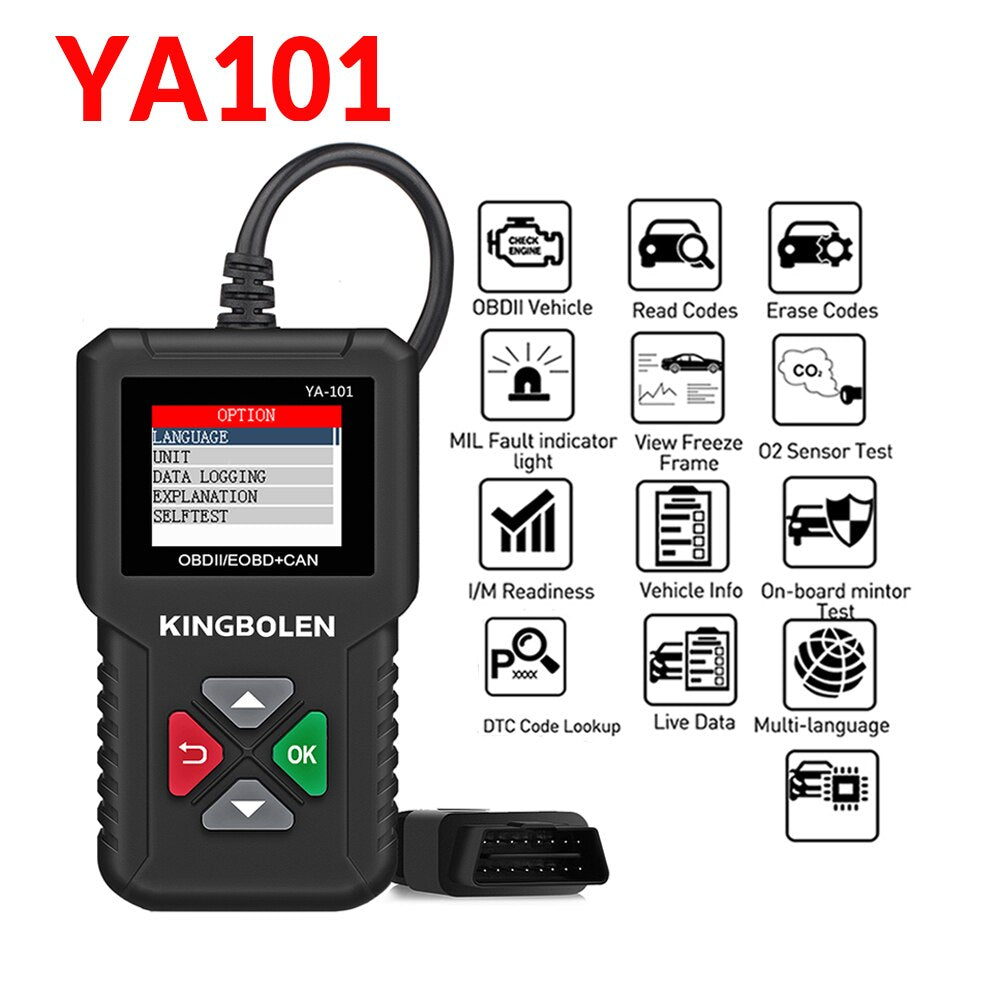

KINGBOLEN YA-101 Code Reader for Check Engine Light OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool
YA101 is a great upgrade from more basic diagnostic code readers. The major function of this scanner is detecting the Engine System, reading and erasing error codes. Once plugged into your vehicle's 16pin OBDII DLC, the unit will power up and prompt you to start your ignition. If your vehicle has a Check Engine Light on, YA101 is the first tool you need to have to help you determine the cause and find a solution.
Top Reasons to Buy One Pcs Kingbolen YA101 Scanner
1.Vehicle Diagnoses Doctor
2.View Live Data & DTCs Lookup
3.All OBDII protocols Vehicles Coverage & FREE Update Lifetime
4.Garage Necessity
Support for 9 languages: Russian,English,Spanish,French, German,Italian,Portuguese,Japanese,Chinese
Life-time Free Update
pls install update tool from Official webiste, and copy the newest firmware ,paste to the YA101.
http://www.ediagtool.com/plus/list.php?tid=7
Integrated Battery Tester
Besides check engine error code reader, this device also help you diagnosis on your car battery status.
Screen Capture
In YA101, you can press "UP" and "DOWN" buttons simultaneously on this scan tool for 5 seconds to take a screenshot of your viewing data stream and store it inner for printing.
Where to check if my car is OBD2 compliant?
YA101 car OBD2 scanner is a auto check engine error code reader work based on Legislated OBD-II protocols:
ISO15765-4 (CAN)
ISO14230-4 (Keyword Protocol 2000)
ISO9141-2 (Asian, European, Chrysler vehicles)
J1850 VPW (GM vehicles)
J1850 PWM (Ford vehicles)
If you can not sure, look under the hood and try to locate a label that explicitly states that the vehicle was designed to comply with OBD-II legislation.
Supported Vehicles
YA101 Scan Tool Support Most of OBD2 & EOBD & CAN Protocol Vehciles:
American Car : Standard OBD2 Protocols from 2000 to now;
European Car : Standard OBD2 Protocols from 2003 to now;
Japanese/Korean Car: Standard OBD2 Protocols from 2006 to now
Chinese Car:Standard OBD2 Protocols from 2009 to now
Russian Car :Standard OBD2 Protocols from 2012 to now
(Note: YA101 only Support 12V cars, Does not support 24V Truck )
Can YA101 remove engine lights?
1.Turn Off ''Check Engine'' Light
Parts cause your check engine light on include:
1. Gas Cap
2. Oxygen Sensor
3. Air Fuel Ratio Sensor
4. Mass Air Flow Sensor
5. Ignition Coils
6. Spark Plug Wires
7. Spark Plugs
8. Thermostat
9. EGR Valve
10. Evaporatative Emission Canister Purge Valve(EVAP)
11. Catalytic Converter.
2.Decreased fuel consumption,Decreased engine noise.Decreased in temperature , ect .
If the engine light is not turned off in time.it will Cause Serious environmental pollution
Powerful and Competitive Functions
Compare to CR3001, YA101 error code reader more reliable with high performance.
Questions & Answers
Q: Can it support the Mode-6 On-Board monitor test ?
Yes, You can judge whether there is a problem in the car through the maximum and minimum values when you using this YA101 Code Reader. (Mode-6 depends on whether the car's ECU can support)
Q: Can it support Mode-8 EVAP/ Component Test?
Yes, You can know the accurate fuel ratio and improve the performance of the car using this YA101 OBD2 Scanner.
Q: Can it read the hidden Codes, if my car does not show up DTCs?
Yes, for the engine, it can read the hidden codes with the data stream functions; For the battery, it can get an early warning via the battery voltage test function using the YA101 Code reader vehicle diagnostic tool
Q: Does it read and clear Airbag, SRS and ABS etc. errors?
No, this device only read and clear Engine errors.
Q: But my car has the 16-pin OBD connector, shouldn't it be OBD-II compliant?
No, not necessarily. A lot of European and Asian manufacturers equipped their vehicles with D-shaped 16-pin connectors long before they began installing OBD-II systems on those vehicles. One curious thing to note here is the fact that most non-EOBD compliant vehicles had a DLC that does not fully conform.

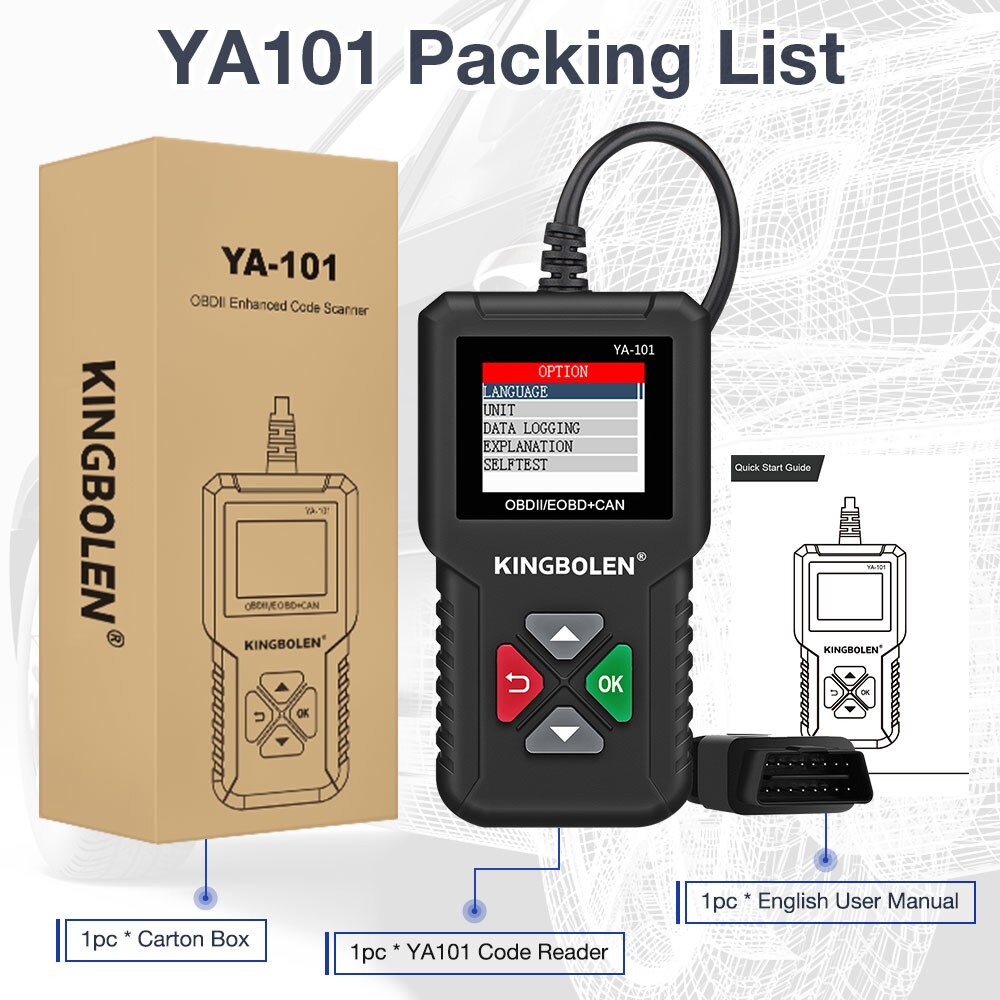

Packing List:
1pc * YA101 Code Reader
1pc * English User Manual
1pc * Carton Box

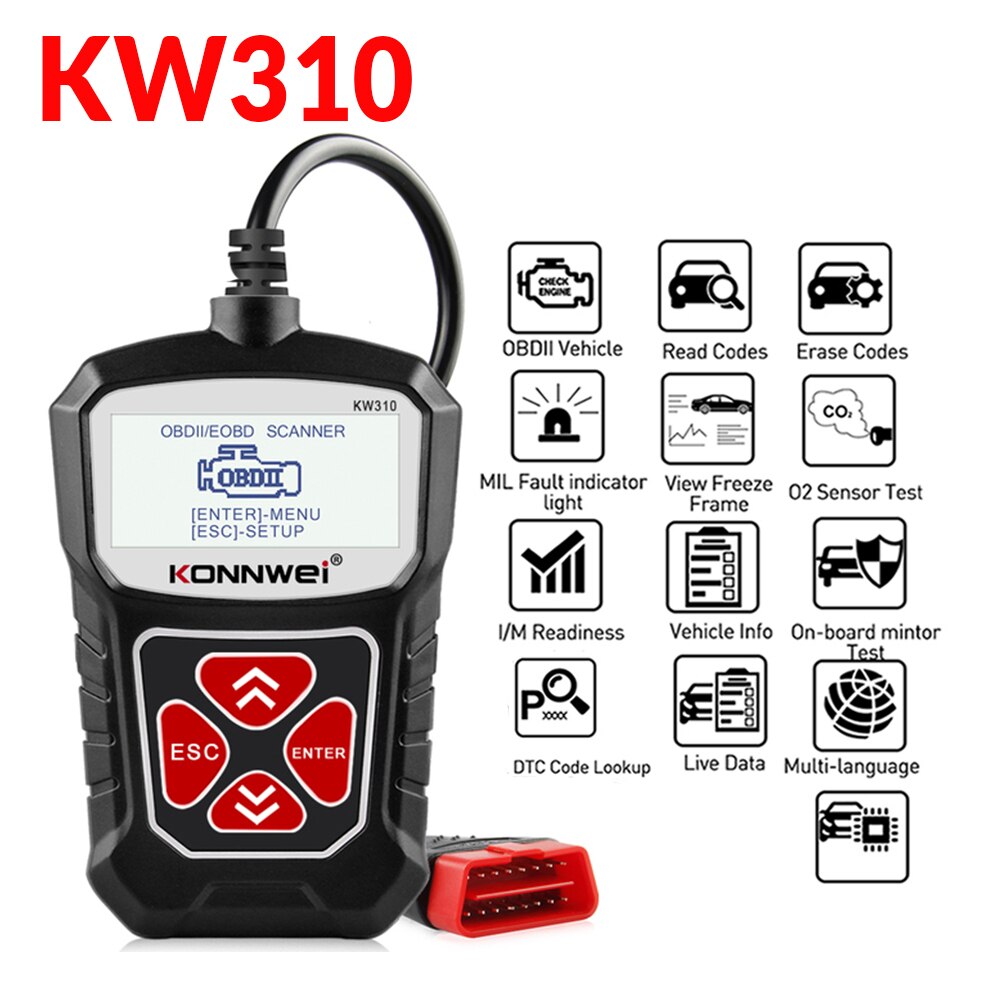

Type 2: KONNWEI KW310 Description
KONNWEI KW310 OBD2 Scanner for Auto Full OBD 2 Car Scanner Diagnostic Tool Automotive Scanner Car Tools Better Than ELM327
The KONNWEI KW310 OBD II/EOBD Scanner supports all 10 OBD II test modes on all OBD II compliant vehicles to enable technicians to accurately diagnose even the thoughest problems. Sophisticated yet easy-to-use, this ergonomic scan tool makes your vehicle service experience much more pleasant!
Do you have these problems?
KW310 Basic Funtions:
1.Reading Codes Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.View Freeze Frame Data Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
6.Read Vehicle Information Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
7.Turn off engine warning light
8.Smoke emission Check
9.Engine EPC Check
Support language:
English,Russian,Deutsch,Spanish,French,, Dutch,Portuguese.
KW310 Support car models:
American (USA) car:
Compatible with Standard OBD2 Cars from 1996 to Now.
European car:
Compatible with Standard OBD2 Cars from 2003 to Now.
France Car:
after 2006
Asian car:
Compatible with Standard OBD2 Cars from 2007 to Now.
Chinese car:
Compatible with Standard OBD2 Cars from 2009 to Now.
NOTE:
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,don't have Special Functions,Like ABS Reset,Airbag Reset... Please Leave us message in below format, we will reply you within 8 hours. for example : xx, 2005, 2.0cc, Diesel
Warning:
Not Support Russian Cars VAZ,UAZ,LADA ;
Not works with trucks For Ssangyong Actyon , from 2009 to 2017 years. For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years,
Not Support Opel Corsa c 2004 1.3 CDTI Nor Support vw golf 4 2002
Not support Citroen C4/C5 .
Not support Chevrolet cars ,
Not support Renault Logon/ megane
KONNWEI KW310 Supports Protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
How to use it ?
Please plug device into car's 16 pin OBD port, the device will be powered on and follow the on-screen instruction to go!
